How three Americans created the folding carton industry

BY : Nick Howard, C.E.A., President, Howard Graphic Equipment Ltd.

The year 2020 will go down in history as one of the most turbulent in recent memory. Beset by Covid-19 and political turbulence, almost everyone I know can't wait to ring in a new year. The United States continues to be in a crisis of its own making, with Politics drawing an iron curtain across party lines. The President seems to inflame the opposition with incendiary comments on just about everything. Compared to other democratic societies, American health care is one issue that the rest of the world struggles to understand. The Republican Party (and President) argue that the Democrats demand "free" healthcare. Simultaneously, the Democrats can't explain how every citizen would be well served with a universal public option.

We have a nationalized system here in Canada, but it's not free! Everyone has to have a hand on the rope and, through payroll taxes, fund the plan. The majority of citizens accept the public funding of Police and firefighters. We willingly follow the road rules, so isn't healthcare necessary and for the common good?

The rabid Covid-19 pandemic also shows how special interests in America can kneecap an appropriate solution. Mask-wearing seems just simple common sense. But to retain his loyal business supporters, the President casts doubt on this simple practice, then spins it into some symbol of rights suppression. Pressure from big and small business owners may suggest that masks will exacerbate company closures. Lockdowns are simply part of this position: if businesses have to close, the economy is in freefall and is chaos next up at bat? Without slaying Covid-19, just having the virus run unchecked results in the opposite effect. Key supporters of the President, big business, gun advocates, and religious interests perhaps misconstrue this entirely while continuing unabated in support of a failed argument.

But what is currently on display now in the United States is not how I see Americans. A great deal of my business life has involved doing business with our neighbours to the south, and I always found Americans more progressive than the rest of the world. It seemed that selling in the USA was much more accessible due to Americans having a more open and broad appreciation of whatever you were selling. It appeared they cared less about little picky things and instead focused more on "what is this machine going to do for me, and can I make money with it?" Americans tend to look forward, not backward. This may explain why so many genuinely great innovations come out of America. Someone says, "Hey! We can make that better, faster and cheaper."

"This willingness to invent is a tale of three innovators that, unlike their polarizing brethren in Washington, took a unique idea and developed it.

Fourteen-year-old Robert Gair had arrived in New York City from Edinburgh, Scotland, in 1853. An enterprising young man, in 1864, Gair soon set himself up as a paper jobber (buying and selling paper and cardboard goods) at a remote location in Brooklyn. With the newly invented corrugated material's arrival before 1870, Gair invented several machines to manufacture these fluted corrugated sheets. The idea of a paper box was just in its infancy, as most goods were either wrapped in paper with string or placed in veneer-wood boxes.

In 1879 Gair went further and was credited with the machine's invention that would produce "folding boxes." In so doing, he is also credited with manufacturing the first pliable steel rule. The use of a metal rule was first attempted earlier when Gair had been manufacturing flat-bottom paper bags. One day a simple metal ruler used to crease the bags, shifted, and instead cut a bag. That mistake led to the discovery that in using a steel rule, both scoring and die-cutting were possible simultaneously, which prompted Gair to manufacture prefabricated boxes. Later in 1887, the British printing giant E.S. & A Robinson (soon to be known as the Dickinson Robinson Group or DRG) caught wind of Gair's breakthrough and brought the technology back to England.

An old process called "Dinking" actually predated Gair's invention but not in the paper industry. Shoe manufacturers developed a sharpened die to cut out various shoe and boot parts appearing in the mid-19th century. Although occasionally used to punch metal, Dinking techniques were closely held and seemed bespoke to shoes and possibly other leather goods. Along the way, Gair would amass a sizable fortune in New York City real estate, primarily in an area "Down Under the Manhattan and Brooklyn Bridge Overpasses," which the locals call DUMBO.

Robert Gair set about to patent his invention in 1879. He referred to it as "the improved apparatus for cutting and creasing paper in the manufacture of paper boxes" when he swore an oath for a US patent application. Unfortunately, Gair never completed the paperwork, and a US patent was never granted to him. During the remaining years of the 19th century, the steel rule concept spread around the world as various industries appreciated its usefulness and labour-saving profitability.

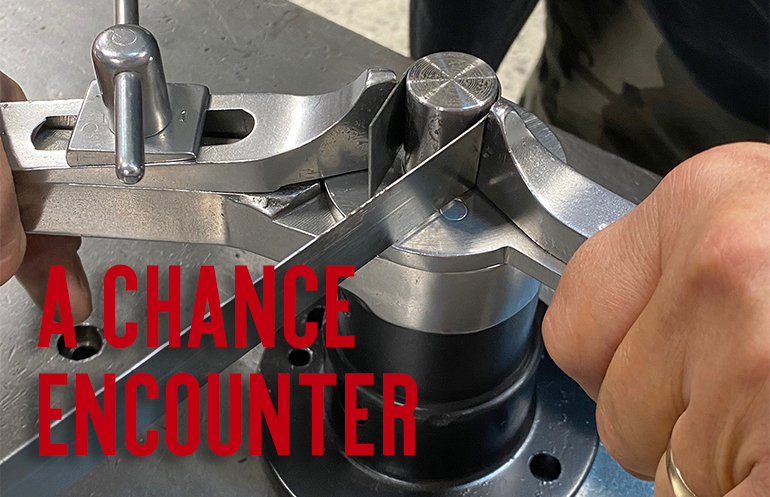

Meanwhile, fast forward to Fort Wayne, Indiana and an inventor named Joel Welty. With no previous experience in the printing industry, Welty somehow caught wind of the need to bend and cut steel rule into intricate shapes for use in paper labels and gaskets. The device he would invent in 1902 would form the next critical phase of steel rule die development, now including the growing paper-box industry. Branded the "Multiform," this little gadget borrowed from similar technologies used in the sheet metal industry. The Iron Worker, a multifaceted tool still in everyday use, showcases some basic concepts Welty applied to invent his little bender. When I say little, I mean little as it weighs less than ten pounds with two levers working in an arc around a center mandrel. Just bolt it to a bench, and you are ready to use it. Welty sold quite a few; however, one lucky sale Welty made was to the Fort Wayne Paper Box Company.

“Welty somehow caught wind of the need to bend and cut steel rule into intricate shapes for use in paper labels and gaskets.”

The final phase would not appear until shortly after Welty died in 1910. On a spring day, John Richards, who hailed from Albion, Michigan, was returning to the train station after visiting his brother. The path took him past the Fort Wayne Paper Box building, and through the window, Richards noticed a young man using an unusual tool to bend steel rule. He enquired and found out that the device was made across the street. Off Richards went to meet Welty's widow and purchased the patents, patterns, and business of the J. Welty Co in a very short time.

Welty patents
L: J. Welty patent 1902
R: J.A. Richards patent 1913

As written later in Richard's book "The Art of Die Making," he says, "[Welty] had sold [Multiforms] all over the world, but in a remarkable coincidence, I first saw it where it was designed and built." No stranger to the printing industry Richards had worked as a mechanic for the Miehle Printing Press Co. and then the Campbell Printing Press Co. in 1906; Richards would start his print shop, which included making dies and even designing a bender.

Richard's fortune would result in a dynamic business that would become the center of a booming Die-making industry – the J.A. Richards Company. Months later, the firm improved the original Multiform bender with a patent issued in 1911 and made substantial changes by 1913. With his growing family, which would eventually include ten children, Richards needed a bright mind and the urgency to support his brood. In 1916 the company relocated to Kalamazoo, Michigan. Rapid new technological developments to manufacture complex shapes and now using Lignostone base plywood uncovered a further unique opportunity for Richards as these boards needed kerfs cut. Complex machines incorporating a jig-saw, drill, and saw, made it easier for a skilled Die Maker to create the inlay necessary to fit the rule.

Indeed most of the printing and paper box industry is familiar with the JA Richards Co, but steel rule travels far beyond Print. Metal punching proliferated with everything from fan blades, automotive body panels, and even aircraft components "punched" with equipment made in Kalamazoo. Then there are the gasket and fabric/leather industries, who quickly noticed the massive production savings using a hardened flexible rule that could be bent to any shape.

The J.A. Richards Co would remain in business until 2003. They prospered in both good and bad economic times, continually inventing and improving all sorts of die-making machinery. They also supplied special tooling, blanking dies, and die-board. However, the paper box industry was rapidly changing. The arrival of the laser to cut a die board started to eat into sales of mechanically jigged die boards, and with it went the die-saw business.

Furthermore, computerized tools to bend the rule had left Richards without an answer in this segment. However, thousands of Richards's instruments are still used for smaller jobs or emergency rule repairs.

Today the remnants of the J.A. Richards Co are owned by the Porth Products Co in Paw Paw, Michigan. During an afternoon conversation with Mr. Karl Porth, I learned of Richards's demise. I had called him to see about a replacement spring for a Richards cutter we were restoring for the Museum. Although familiar with the Richards Co, having bought and sold quite a few of their tools in the past, I had yet to learn of Richard's historical background and mainly how vital Mr. Richards was in developing today's flourishing Paper-Box industry. During that call, Porth mentioned he had an original Welty "Multiform" from pre-1910 and was gracious enough to donate it to our Museum.

Welty patents
An original Welty "Multiform" from pre-1910 donated to HIW museum by Mr. Karl Porth, of Porth Products Co., Paw Paw, MI.

We are indebted to Mr. Porth and the American spirit, which may not seem beaming as bright in 2020. I'm confident this 'can-do" country will be back again soon and continue bringing the world revolutionary inventions!
